Octopus | S520 Mind freak

Obi Octopus comes equipped with a mind boggling Octa-core Processor that allows you to multi-task impossible feats. Add to it the latest OS and a brilliant 13MP camera and you get one hell of a phone.

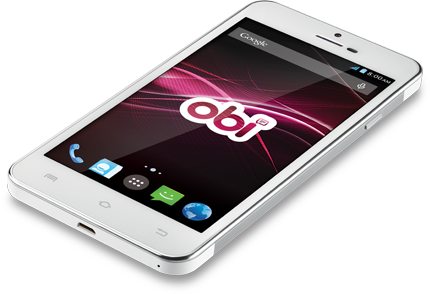

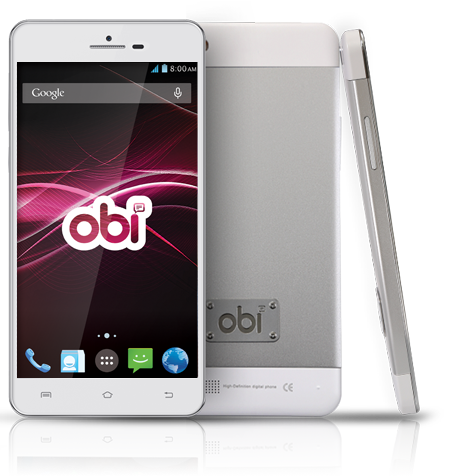

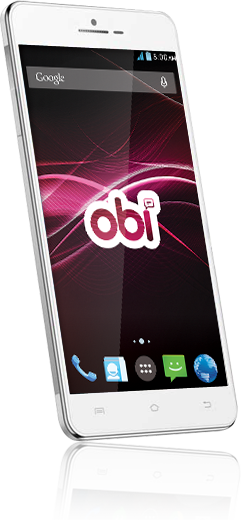

  • Octopus | S520
  • Octopus | S520
  • Octopus | S520
  • Octopus | S520
Basic Specifications
Model Name Octopus
OS AND LANGUAGE Google Android - English
OS Version Android KitKat (4.4.2)
RAM 1GB
ROM 8GB
Chipset MTK, MT6592 1.7GHz Octa Core Processor

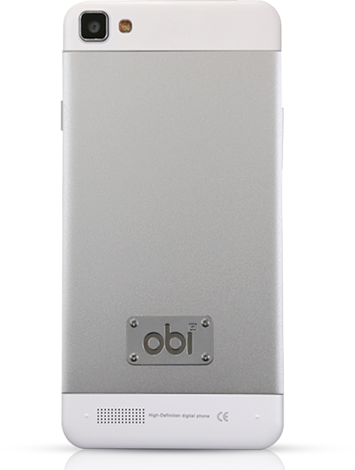

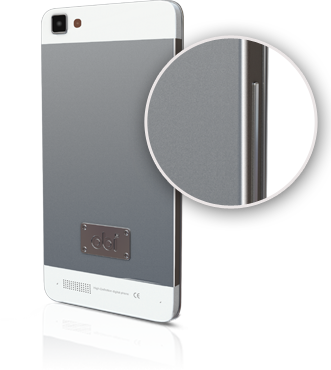

Product Type/Appearance Smartphone Touchscreen bar phone with silver metallic back cover
Network (MHz) / Frequency GSM 850/900/1800/1900; WCDMA 850/2100
SIM Slots Dual SIM slots
SIM type Micro SIM + Regular SIM
Dimensions 145mm*75mm*8.4mm (length x breath x thickness)
Battery Type Li-ion Removable
Battery Capacity 3.7V
Battery Power 2100mAh
Talktime 360 minutes *
Standby Time 180 Hours *
Charger Input and Output voltage Input: 110-240V; Output:5V
Charger PIN type 3 Pin EU type
SMS Capacity Based on available memory
External memory Max 32GB SD card support
Phone Memory * 8GB of hosted memory, ideally 5.02GB of free space
Memory Card Capacity Up to 32GB
Memory Card Type Micro SD

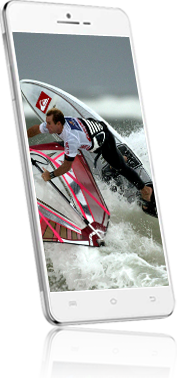

Display
Screen size 12.7 cm (5)
Screen Technology TFT Screen with IPS
Screen Resolution HD Screen 720 x 1280 pixel
Screen type Capacitive type 720p colour screen
Camera
Camera / Type 13MP Sony IMX111
Auto Focus Yes
Aperture 2.4
Front Camera 5.0 Megapixel
Face Detection Yes
HDR mode Yes
Face Beautification Yes
Gesture Control Yes
Panoramic capture Yes
Geotagging Images Yes
Flash Light Yes
Camera Flash light LED flashlight
Zoom Level 4X Zoom
Multi Shot Yes
Photo CLI Yes
Video Recording Yes
Video Format Support 3gp
Wide Screen Video Yes
Video Call (Front Camera) Yes
CLID with Photo Yes
Sound
Ringtone supported formats MP3/WAV
Earpiece & Loudspeaker Yes
3.5 mm Standard audio jack Yes
Speakerphone Yes
Caller Group Yes
User Profiles Yes
Language Support
Language Support English Yes
Phone Book
Predictive Text Yes
SMS
SMS Yes
MMS Yes
Concatenated Messages Yes
SMS Chat Yes
Send to Group Yes
Applications & Related Features
Truecaller Yes (Third Party Applications)
GMS applications including Gmail, Maps & Playstore Yes
Email Yes
File Explorer Yes
Calculator Yes
Calendar Yes
To-Do List Yes
FM Radio Yes
FM Recording Yes
Recording formats WAV/AMR/MP3/3GPP
Supported Streaming Formats 3GPP/MP3
Supported Image Formats JPG/PNG
Other Wireless Network support
HSDPA/HSUPA Yes
GPS Yes
Bluetooth Yes
Bluetooth version 4.0
WAP Yes
WAP Version 2.0
GPRS Yes
WiFi (IEEE 802.11 b/g/n) Yes
USB Micro USB port
3G Yes
Browser Type and name Android standard browser
Sensors
Proximity Sensor Yes
Light Sensor Yes
Gravity Sensor Yes
Motion Sensor Yes
Certification
SAR 0.185w/kg@1g(Head)
0.725w/kg@1g(Body)
CE
RoHS
Note: Specifications are subject to change without prior notice.
* These parameters are dependent on hosted operating system and Battery/Network conditions.
  • Obi Octopus | S520 handset in white and silver
  • 100-240V AC Input and 5V DC Output, 3 pin charger(EU type) with USB out and Red Glow Indicator band
  • 2100 mAh 3.7V Obi Li-Ion Battery
  • 3.5 mm standard Pin In Ear, Soft Bud type stereo earphones with Mic and toggle switch-flat wired tangle free cable in matching white colour
  • Standard USB-Micro USB 5 core soft material cable
  • Soft protective leather grain finish flip case in matching white colour
  • Screen Protector
  • User Manual
  • Warranty Card
  • SAR Compliance Flyer
  • Note: Subject to change without notice.
Note: Subject to change without notice.
WARNING: To know more about your device and to avoid injury, read all usability and safety information in this User Manual carefully.

User Manual of Octopus | S520 Download
